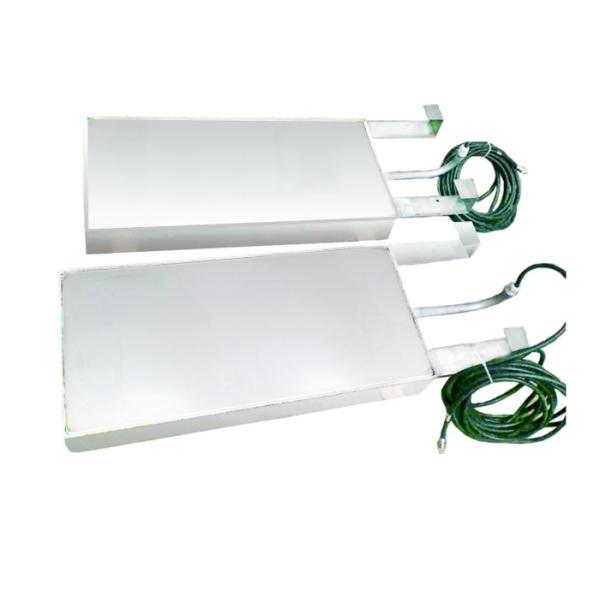

1200 W Power Immersible ultrasonic transducer cleaning Box Degrease
Ultrasonic cleaner is known by customers as its high cleaning
efficiency and excellent cleaning result for blind holes.
Ultrasonic theory is use high frequency(20kHz ~ 120kHz) to work on
the object surface to remove the contaminants, frequency produce
millions bubbles and the bubbles implode at same time to hit the
spot on object surface, the continuous hit can clean the goods
rapidly.
Limplus Immersible ultrasonic transducer box adopt high quality
Stainless steel, industrail ultrasonic transducers, professional
transducer glue, etc. to ensure the cleaning performance.
LS-24T specification:
Transducer box size: 500*350*100mm
Ultrasonic power: 0~1200W
Ultrasonic frequency: 25khz / 28khz/ 40khz
Material: SUS304 / SUS316L
Surface handle: Hard-Cr plating
Transducer numbers: 24pcs
Separate generator control
Voltage: AC110V / AC220V
Timer: 0~99minutes or continous working
Cable leadout method: Rigid or flexible
Transducer box system specification:
| Model | Unit Size (mm) | Ultrasonic Power(W) | Frequency(kHz) | Transducers(pcs) | Material | Voltage |
| LS-06T | 280*180*100 | 0~300 | 28/40 | 6 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-12T | 360*250*100 | 0~600 | 28/40 | 12 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-18T | 410*300*100 | 0~900 | 28/40 | 18 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-24T | 500*350*100 | 0~1200 | 28/40 | 24 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-30T | 550*420*100 | 0~1500 | 28/40 | 30 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-36T | 620*500*100 | 0~1800 | 28/40 | 36 | SUS304/SUS316L | AC 110V/230V, 1phase |
| LS-48T | 750*600*100 | 0~2400 | 28/40 | 48 | SUS304/SUS316L | AC 110V/230V, 1phase |
Features:
1. Box size can be customized.
2. Varies cable leadout method
3. Hard Cr plating treatment for transducer box.
4. Multi frequency is also available.
5. BLT type transducer.
Limplus Advantages:
- Limplus ultrasonic cleaner adopt power transducers and adhesive
bonding technology
- Adopt microprocessor circuit, digital display, original Germany
CeramTec piezoelectric ceramic chip, high precision CNC machine
equipment.
- Good outlook, low defective rate, easy operation and professional
style. Novel structure, high reliability, high efficiency, and low
noise. Additional functions such as digital heating, thermostat,
and timing etc.;
- Multi ultrasonic directions ensure completely and thoroughly
cleaning for the parts; keep the cleaned machine part precision
- With water level detect system to ensure safety working and provide
protection for machine.
- The size of ultrasonic cleaner tank is customized according to
actual tank body; welcomed customization.
- Piezoelectric ceramic ultrasonic transducer
- Easy operation and professional style.
- Timer-controlled ultrasonic
- Movable basket
- Castor with brake
- Reduce liability
- Automatic cleaning
- Environmentally friendly
- Built-in thermostatically controlled heat
- Stainless steel lid
- Filtration System: for heavy duty oil removing, cycle cleaning
solvent, prevent second pollution and better cleaning effects.
FAQ:
Q.: Which ultrasonic frequency is better for my parts?
A.: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel
parts clean(remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Q: How do I get the best out of my ultrasonic cleaner?
For best results, ensure the component being cleaned is fully
submerged in a suitable cleaning fluid and not touching the tank to
allow maximum cavitations.
Please refer below picture and choose the convenient cable leadout
method according to your tank.
